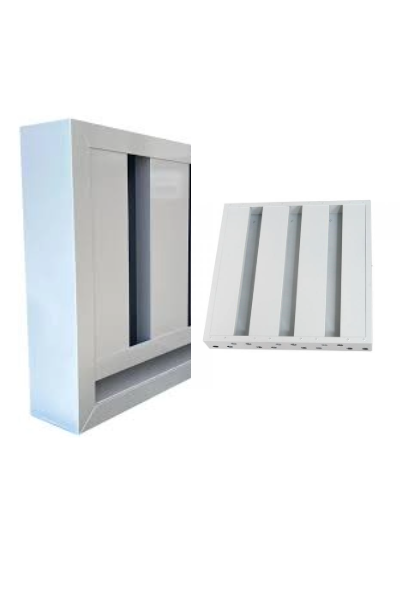

SAND TRAP LOUVER
SAND TRAP LOUVRE IS DESIGNED TO SEPARATE LARGE SIZE SAND PARTICLES FROM INTAKE AIR AT LOW AIR VELOCITIES, THUS AVOIDING EXCESSIVE DUST LOADING OF CONVENTIONAL FILTERS. IT IS NOT INTENDED AS A SUBSTITUTE FOR CONVENTIONAL SUPPLY AIR FILTRATION PLANT. IT GIVES EXCELLENT PERFORMANCE FOR AIR FILTRATION AT MODERATE PRESSURE DROPS AND LOW AIR VELOCITIES.
✅ THE SAND TRAP LOUVER IS MADE OF EXTRUDED ALUMINIUM SECTIONS. IT IS COMPOSED OF TWO SETS OF INVERTED U-CHANNELS, MOUNTED VERTICALLY ON TWO OPPOSITE ROWS.
✅ FRAME THICKNESS 1.2 MM AND BLADE THICKNESS 1.5 MM (ASK FOR OTHER OPTIONS).
✅ THE SAND TRAP LOUVER IS USED AT THE FRESH AIR INLET. IT CAN LOWER THE DUST LOADING OF CONVENTIONAL FILTRATION AS IT IS DESIGNED TO SEPARATE LARGE SIZE SAND PARTICLES AT LOW TO MEDIUM SPEEDS.
✅ FIXED WITH GI BIRD SCREEN / INSECT SCREEN – STANDARD. ALSO AVAILABLE WITH STAINLESS STEEL SCREEN.
✅ ALSO AVAILABLE IN SELF-CLEANING TYPE THAT HAS A SET OF HOLES AT THE BOTTOM OF THE CASING TO DISCHARGE SEPARATED SAND PARTICLES.
✅ AVAILABLE IN POWDER COATED COLOUR FINISH ON REQUEST.
